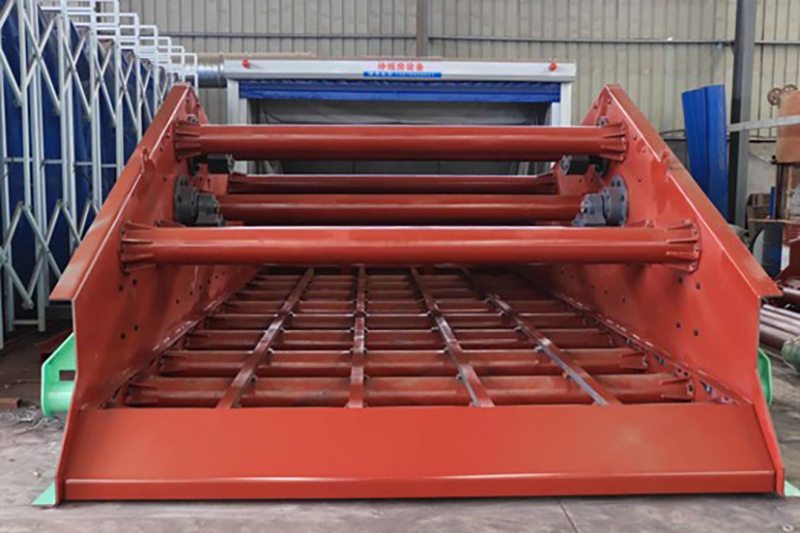

Dewatering screen

Usage and application:

Dewatering Screen is widely applied for dewatering, desliming, deintercalation, which can be used to sand and stone washing plant, coal preparation plant, sludge recycling, mineral processing plant, tailings dry discharge and more. So it is also called sand and stone dewatering screen, mine dewatering screen, coal slime dewatering screen, tailings dewatering screen.

Working principle:

Dewatering screen adopts dual-motor self-synchronization technology. Motors coordinate with universal eccentric and adjustable amplitude vibrator. When motors start to work, centrifugal forces which generate by the eccentric models will superposition themselves and forming a single direction vibration. The high frequency vibration drive of the screen will line move back and forth in line repeatedly. So the sand will be dehydrated and filtered.

Features:

1. Advanced structure, light weight, high dehydrating ratio with new type vibrating motors.

2. Simple structure, easy maintenance.

3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and      maintenance.

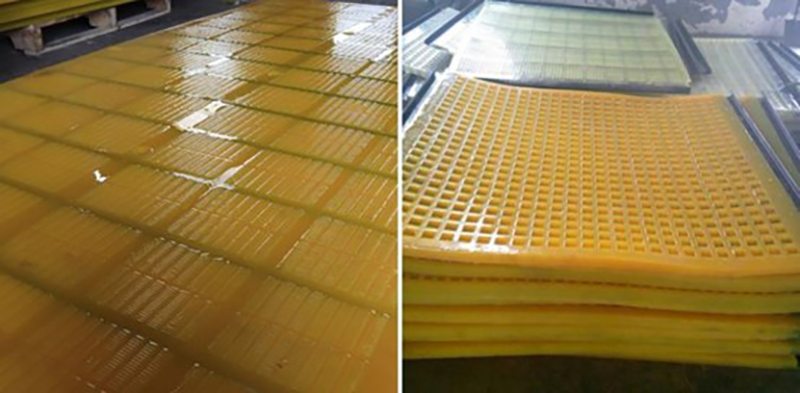

4. Polyurethane screen (PU) high screening ratio, big capacity, long service life and no blocking.

5. Widely used, less replacement parts.

6. Final sand water content down to 15%convenient in pakinng and delivery.
