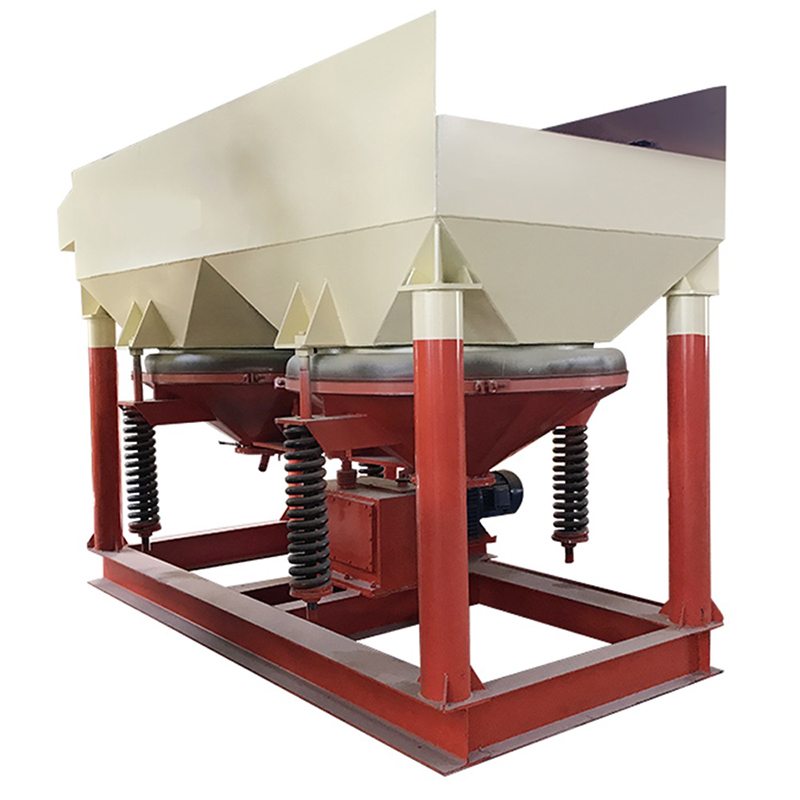

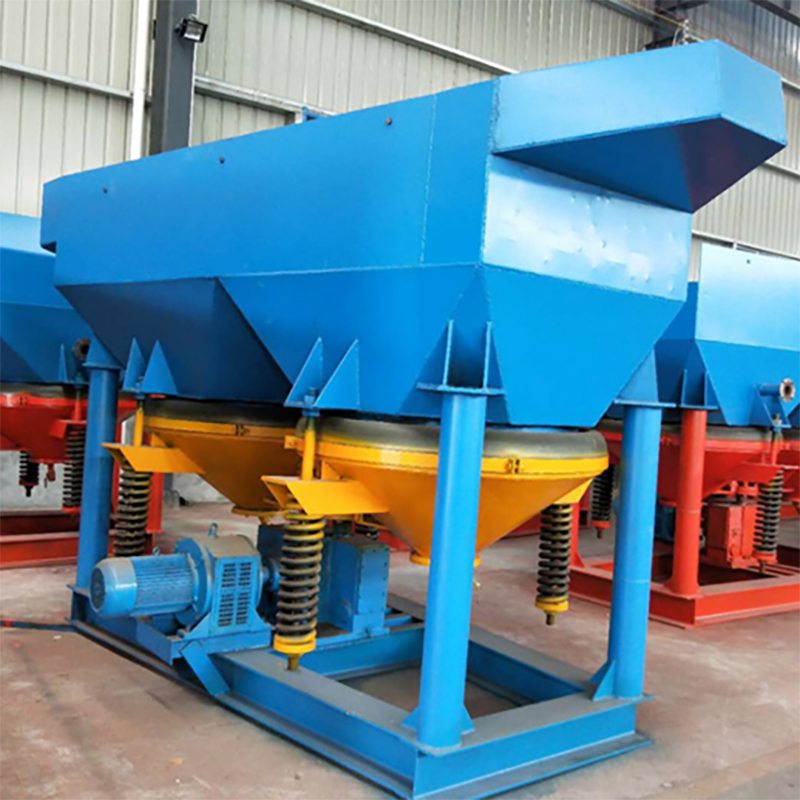

Usage and application :
jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layertheory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separatoris one of the ideal devices in energy-saving gravity separation.
Working principle:
When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
Features:
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator.
6.Suitable to separate out big and small size heavy minerals.
Model | Jig Area (M2) | Stroke (R/Min) | Feeding size (mm) | Hutch Water ( T/H) | Pressure Water (kg/cm2) | Capacity (T/H) | Power (KW) | Overall dimensions (mm) | Weight (T) |
JT0.57-1 | 0.57 | 60-160 | ＜6 | 1-2 | ≥0.3 | 1-2.5 | 1.5 | 1560×820×1550 | 0.612 |
JT1-1 | 1.04 | 60-160 | ＜10 | 2-3 | ≥0.3 | 4-10 | 2.2 | 1322×1190×1915 | 0.9 |
JT2-2 | 2.28 | 60-160 | ＜10 | 2-4 | ≥0.3 | 8-15 | 3 | 3225×1550×2150 | 1.637 |
JT4-2 | 4 | 50-125 | ＜10 | 4-8 | ≥0.1 | 8-16 | 7.5 | 4240×1990×2750 | 4.6 |
JT4-2A | 4 | 50-125 | ＜10 | 4-8 | ≥0.1 | 8-16 | 8 | 4240×1990×2750 | 4.6 |
JT5-2 | 4.86 | 80-120 | ＜10 | 4-10 | ≥0.1 | 10-20 | 7.5 | 3940×2006×2580 | 4.6 |
* Capacity figures are indicative and may vary with feed material bulk density, moisture, and particle size distribution. Contact our technical team for site-specific calculations.
