Mobile Impact Crushing Plant

Get Price List

50-350mmFeeding Size

70-250t/hProcessing Capacity

Position: Home>Products>Mobile Crushing Plant

PRODUCT INTRODUCTION

Structural design, equipment configuration, etc. have been optimized and innovated, the combination is more flexible, and the nearby processing of materials is truly realized.

Mobile impact crusher can crush all kinds of coarse, medium and fine material which compressive strength bellow 350MPa (granite, Limestone, concrete, etc.).Large feeding size , high crushing capacity,high production efficiency.Final product shape is cube, and particle shape is good. In the processing of sand and stone mixture, the advantages are obvious, especially the limestone crushing. Through the impact crusher, the stone specification standard can be effectively achieved.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

All equipment is fully vehicle-mounted, with less transportation and disassembly, and it is quickly put into production when it arrives at the site, and the site is clean and organized.

All mobile stations are equipped with a proprietary crawler device, which saves the cost and time of concrete foundations.

The on-board electronic control system, all circuits have been connected and debugged before the factory, and it can be produced only with an external power supply when it arrives at the site.

There is no need to install a fixed belt conveyor, and the finished belt adopts a 15-meter-long mobile belt conveyor.

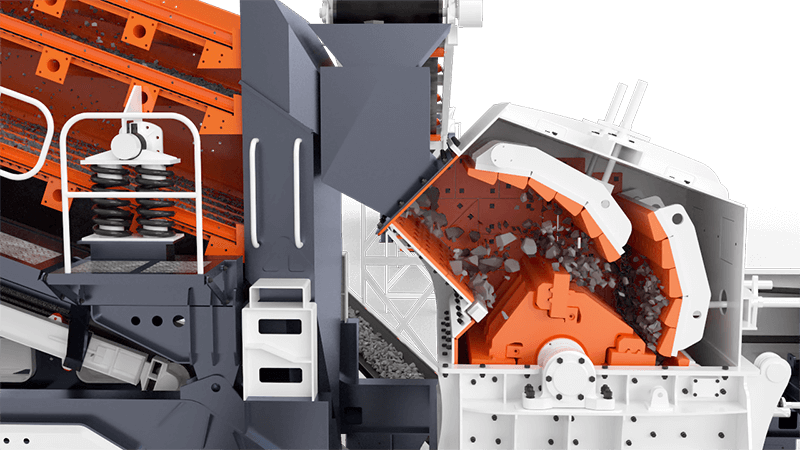

WORKING PRINCIPLE

The material is evenly conveyed into the crusher by a feeder, and after the crusher is initially broken, a closed circuit system is formed by a circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the conveyor for continuous crushing operations. The counteraction type mobile crusher can remove the round vibrating screen according to the actual production needs, and realize the preliminary crushing of the materials directly. It is convenient and flexible to use with other crushing equipments. Counterattack mobile crushing station contains powerful counterattack, double-cavity counterattack and three-cavity counterattack, from coarse to fine, free to be assembled according to processing requirements

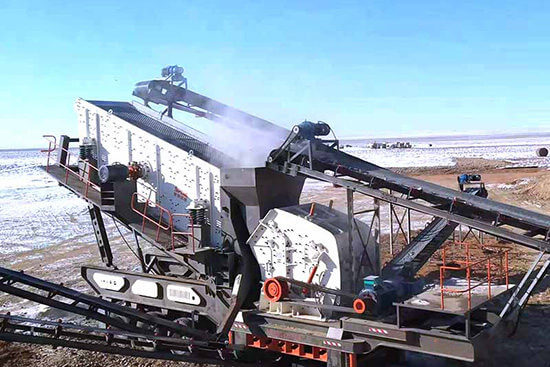

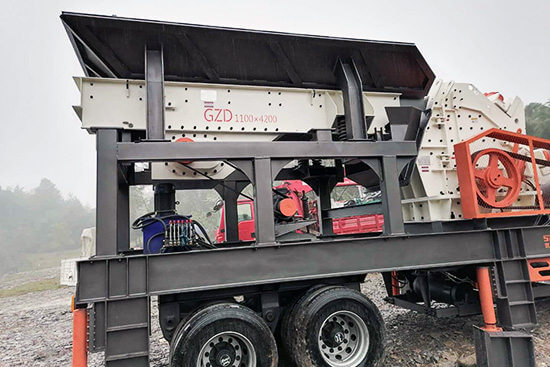

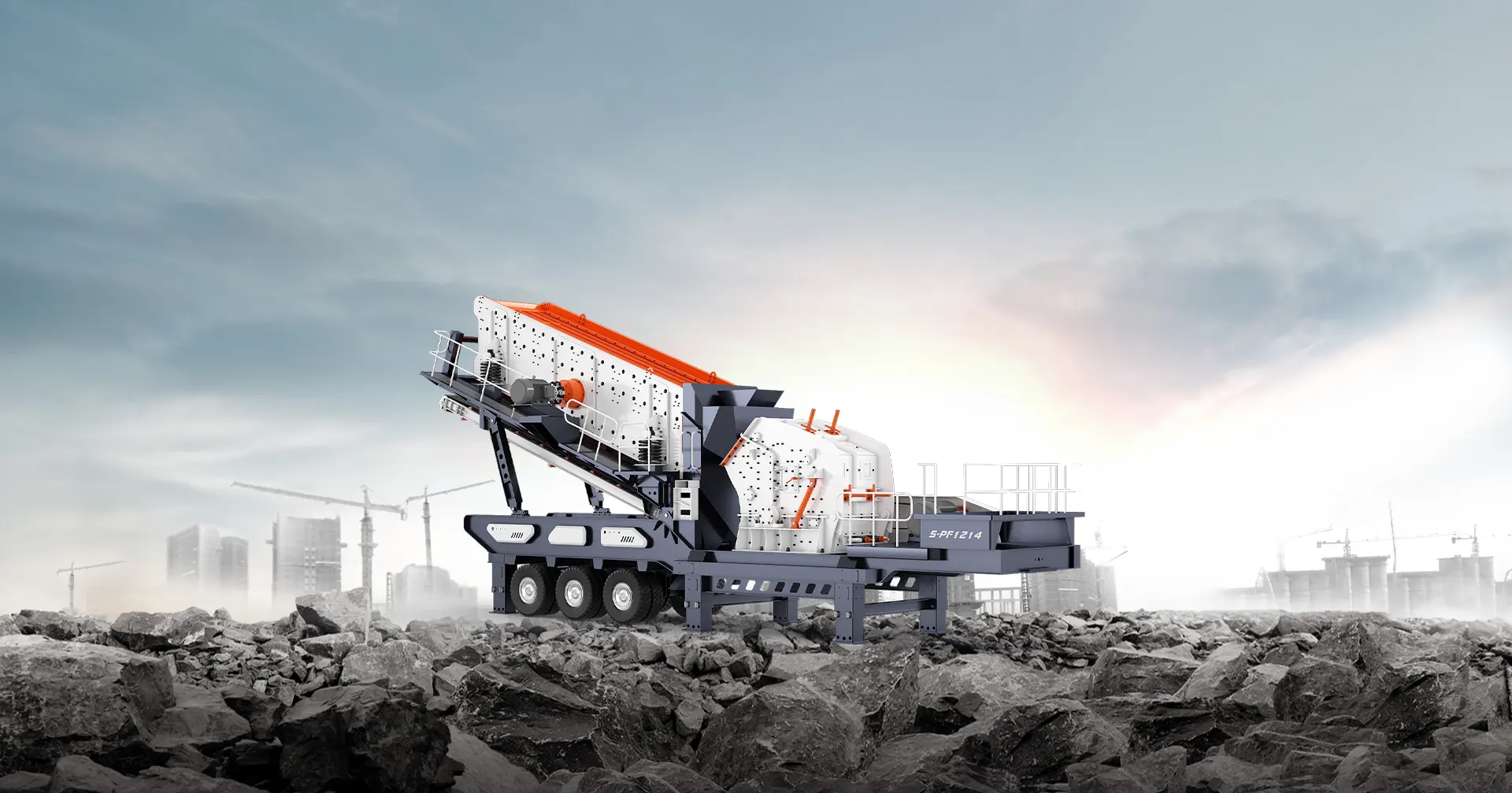

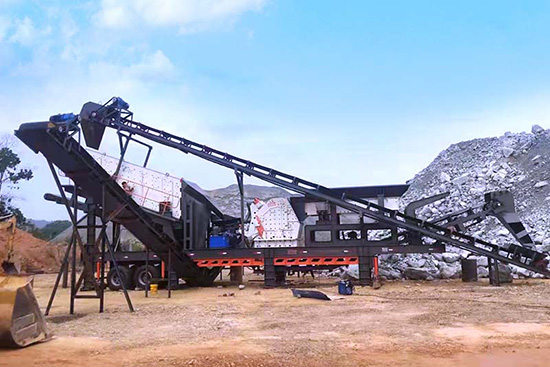

Product Photos

technical specifications

The Standard Model	Corollary Equipment	Corollary Equipment			Transport Dimension(mm)
The Standard Model	Corollary Equipment	Model	Feeding Size(mm)	Capacity(t/h)	Transport Dimension(mm)
S-CS75	3YZK1848	CS75	≤160	59-163	12600×2800×4400
S-CS110	3YZK1860	CS110	≤178	100-200	13800×3000×4400
S-CS160	3YZK2160	CS160	≤188	132-253	13800×3000×4400
S-CS220	3YZK2160	CS220	≤230	215-330	14500×3000×4500
S-Q300	3YZK1848	SQ300	≤160	105-205	12600×2800×4400
S-Q400	3YZK1860	SQ400	≤230	235-575	13800×3000×4400
S-Q500	3YZK2160	SQ500	≤240	304-640	14500x3000x4600
S-H420	3YZK1848	SH420	≤240	85-170	12600×2900×4400
S-H430	3YZK1860	SH430	≤360	120-345	13800×3000×4500
S-H440	3YZK2160	SH450	≤450	255-605	14800×3200×4600
S-HP100	3YZK1860	SHP100	≤140	75-140	13800×2900×4300
S-HP200	3YZK2160	SHP200	≤185	145-250	14200×3000×4500
S-HP300	3YZK2160	SHP300	≤230	220-440	16500×3200×4600
S-PF1214	3YZK1860	PF1214	≤300	100-200	14500×2900×4500
S-PF1315	3YZK2160	PF1315	≤350	130-280	15200×3000×4500
S-PF1320	3YZK2460	PF1320	≤500	180-400	15200×3000×4500
S-S1860		3YZK1860	≤400	65-586	10500×2700×4200
S-S2160		3YZK2160	≤400	81-720	10500×3000×4500
S-S2460		3YZK2460	≤400	100-810	10500×3200×4500

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
