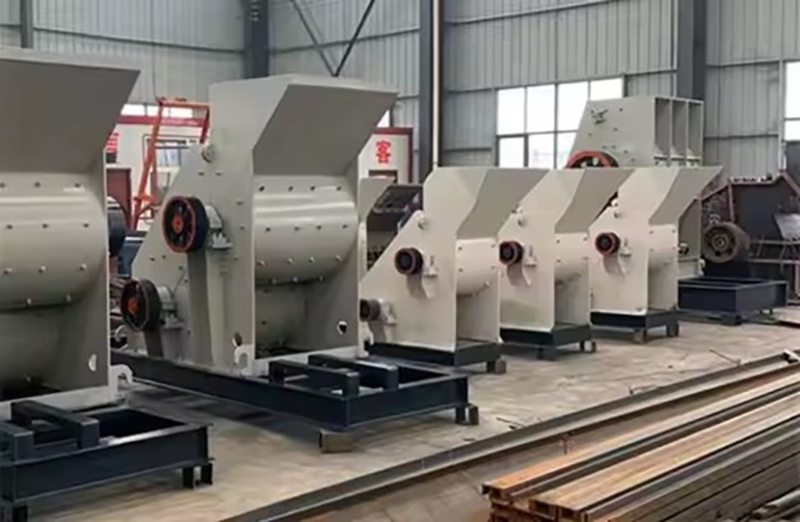

Product Introduction

Usage and application:

The double stage hammer crusher crusher can easily crush high-humidity materials such as coal gangue, shale, coal slag and other materials.It is the first choice for brick factories to use coal gangue as an additive.

Working principle

When working, driven by two motors, two sets of rotors connected with each other rotate at high speed at the same time. Material in the machine cavity by the upper rotor crushed immediately by the rapid rotation of the lower rotor hammer head again. The materials in the inner cavity collide with each other rapidly, and when they are crushed by fans, the effect of hammer powder and powder is achieved, and the coal slag particles with output particle size less than 3 mm are formed. This granularity can fully meet the requirements of brick manufacturer as internal combustion brick.


Features:

1. Double-rotor upper and lower double-stage crusher

2. No sieve bottom, high-humidity material, never clogged

3. Double-rotor two-stage crushing, large output, granularity below 3mm, 80% below 2mm

4. Wear-resistant combination hammer

5. Unique shift gap adjustment technology

6. Hydraulic manual starter housing

Technical Specifications

Model	SCP 600×400	SCP 600x600	SCP800×600	SCP 900×800	SCP 1000x800
Feeding Size( mm)	≤100	≤150	≤200	≤260	≤400
Outlet Size ( mm )	≤3 (<2mm above 90%)	≤3 (<2mm above 80%)	≤3 (<2mm above 80%)	≤ 3 (<2mm above 80%)	≤3 (<2mm above 80%)
Capacity ( t/h )	15-25	15-30	50-70	50-90	60-120
Motor Power ( kw )	18.5+22	22+22	37+45	55+75	75+55
Dimensions ( L× W ×H ) ( mm )	2560×1020×1650	2760×1280×1750	3760×1314×2140	3870×1700×3150	4500×1700×3150

* Capacity figures are indicative and may vary with feed material bulk density, moisture, and particle size distribution. Contact our technical team for site-specific calculations.
