Usage and application:

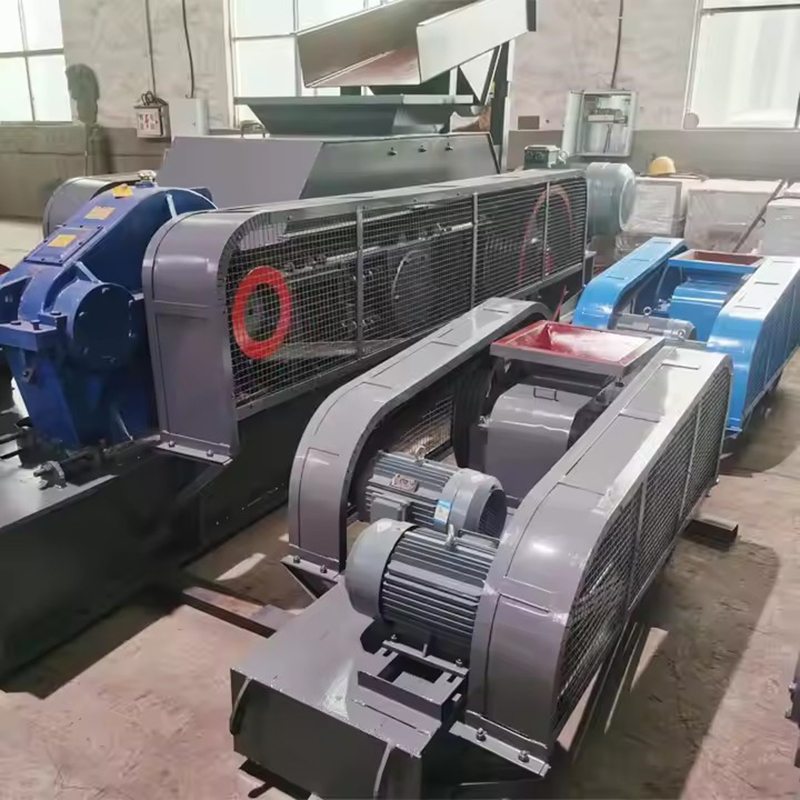

Double roller Teeth Crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, etc.
Working principle of double teeth roller crusher
The materials to be crushed fall from the feeding hopper to the space between the two rolls, after being squeezed and crushed, the final products will be discharged by gravity. There are springs behind each roller, in case hard materials are fed, they can protect the rollers from damage.
Features:
1. Compact structure, reliable performance
2. Low noise and high efficiency
3. Easy to install and only need simple foundation
4. It can adjust the pressure and size easily, and can be made to meet the customer's request
5. Low attrition rate and easy to maintain
Model | Max. Feeding size(mm) | Discharge size(mm) | Capacity(t/h) | Motor power(kw) | Weighy(t) |
2PGC450*500 | 300 | 15-75 | 20-45 | 7.5*2 | 4.2 |
2PGC600*750 | 400 | 15-125 | 30-180 | 18.5*2 | 7.8 |
2PGC600*900 | 40-100 | 18.5*2 | 8.4 | ||
2PGC600*1200 | 50-120 | 22*2 | 11.2 | ||
2PGC800*1000 | 20-150 | 80-180 | 22*2 | 12.6 | |
2PGC800*1200 | 100-220 | 30*2 | 15.2 | ||
2PGC900*900 | 500 | 30-150 | 80-180 | 30*2 | 14.5 |
* Capacity figures are indicative and may vary with feed material bulk density, moisture, and particle size distribution. Contact our technical team for site-specific calculations.
