Vibrating Screen

Get Price List

≤400mmFeeding Size

30-850t/hProcessing Capacity

Position: Home>Products>Auxiliary Equipment

PRODUCT INTRODUCTION

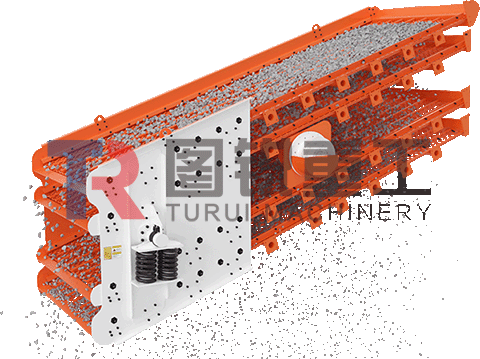

The circular vibrating screen is mainly composed of a screen box, a screen, a vibrator, a damping spring device, and a chassis. The cylinder type eccentric shaft exciter and the eccentric block are used to adjust the amplitude. The vibrator is installed on the side plate of the screen box, and is driven by the motor to rotate through the V-belt to generate centrifugal inertial force, forcing the screen box to vibrate. The side plate of the screen machine is made of high-quality steel plate, and the side plate is connected with the beam and the base of the exciter by high-strength bolts or ring groove rivets. The vibrator is installed on the side plate of the screen box, and is driven by the motor to rotate through the coupling to generate centrifugal inertial force, forcing the screen to vibrate.

20-30mm、10-20mm、5-10mm、0-5mm

It can crush more than 100 kinds of rocks. The common discharge size is...

Features

Screening, high production efficiency

Due to the strong vibration of the screen box, the phenomenon of material blocking the screen holes is reduced, so that the screen has high screening efficiency and productivity

Compact

Easy maintenance, modular vibration exciters on both sides of the screen box can be disassembled as a whole and replaced quickly, eliminating the tedious process of replacing bearings alone

Energy saving

The motor is directly connected to drive, reducing the energy consumption of the transmission system, and the optional spray system and sealing and dustproof system can help environmental protection

WORKING PRINCIPLE

The stone is evenly sent to the jaw crusher by the vibrating feeder for coarse crushing, the coarsely crushed material is sent to the fine jaw crusher for re-crushing, and the crushed material is sent to the vibrating screen by the belt conveyor for screening. The stone sand machine that meets the feeding granularity of the sand making machine is used for sand making, and those that do not meet the requirements are returned to the fine jaw crusher for re-crushing, and the materials from the sand making machine are returned to the vibrating screen for re-screening. The separated sand that meets the requirements enters the sand washing machine for cleaning. After cleaning, the finished product is conveyed by the finished product conveyor belt. The sand and gravel mixture that does not meet the requirements is sent to the sand making machine for re-crushing. The production line will eventually form a 2-break closed circuit. Cycle, according to the user's needs can also carry out a variety of configurations.

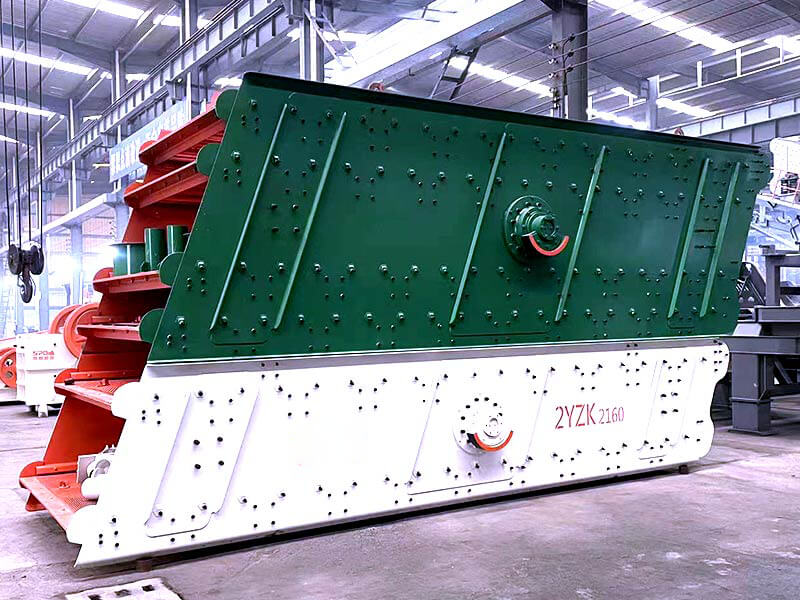

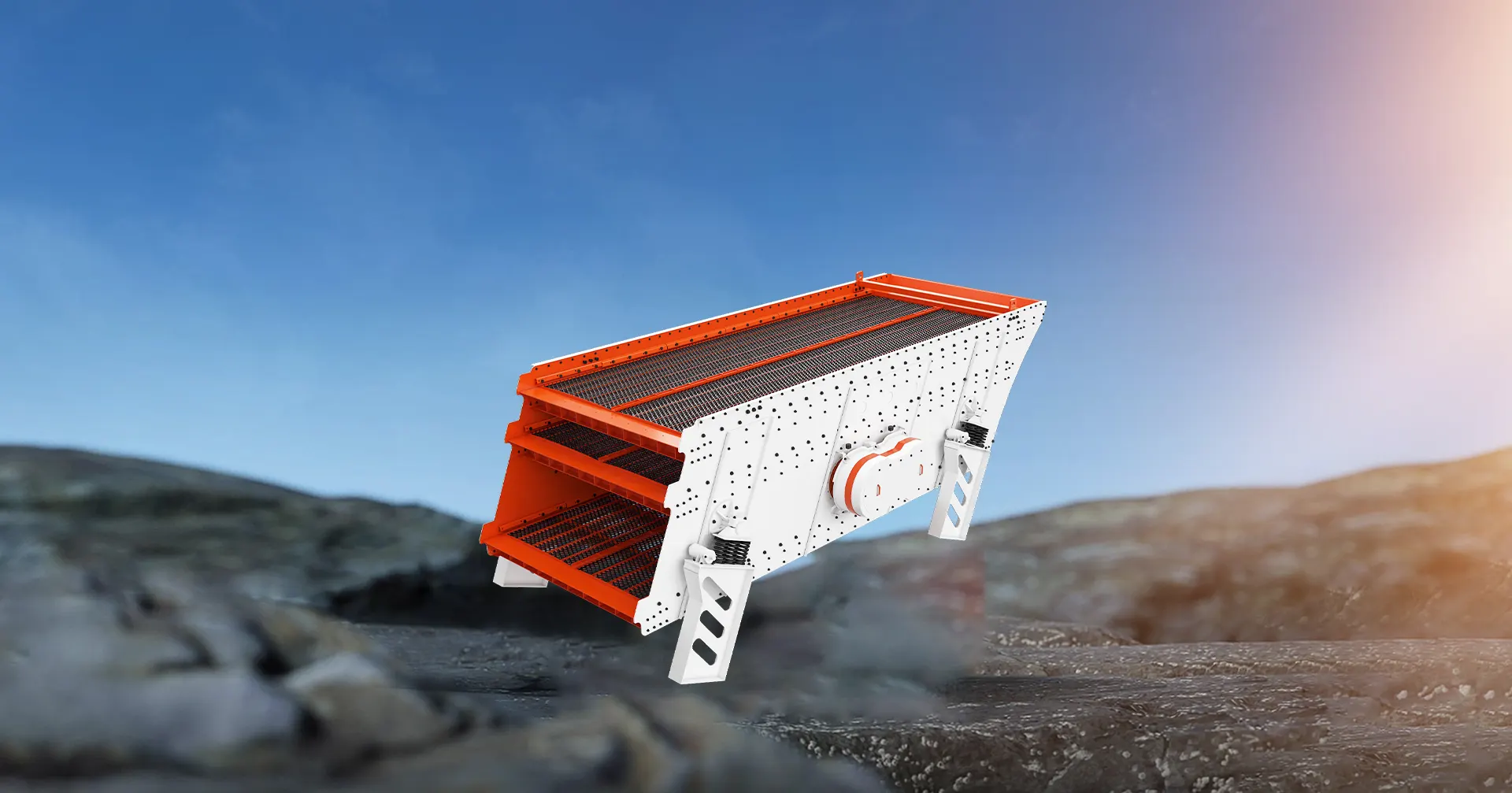

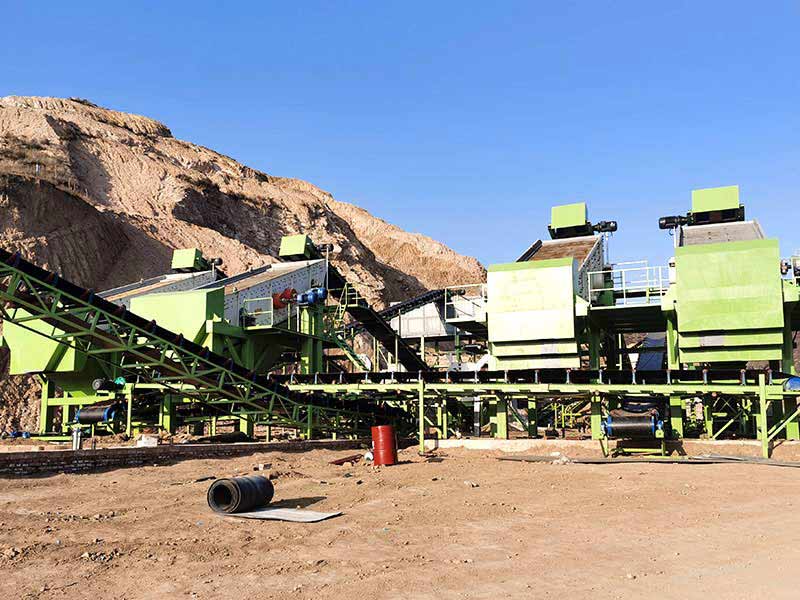

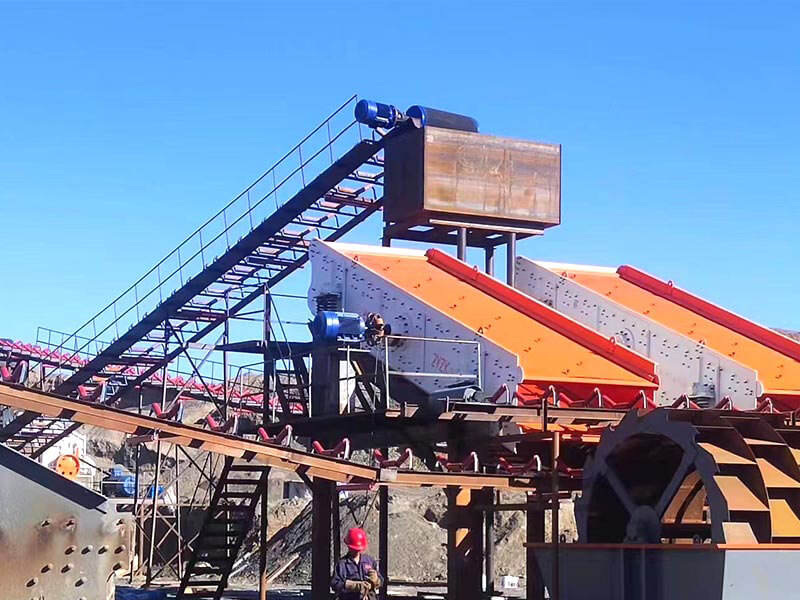

Product Photos

technical specifications

Model	Screen Surface Specification(mm)	Layers	Feeding Size(mm)	Sieve Pore Size(mm)	Capacity(t/h)	Power(kw)	Vibrating Frequency(r/min)	Stroke(mm)
2YZK1237	3700×1200	2	≤400	3-50	30-100	5.5	970	5-9
3YZK1237	3700×1200	3	≤400	3-50	30-100	7.5	970	5-9
2YZK1548	4800×1500	2	≤400	3-100	30-275	15	970	5-9
3YZK1548	4800×1500	3	≤400	3-100	30-275	15	970	5-9
2YZK1848	4800×1800	2	≤400	3-100	56-330	18.5	970	5-9
3YZK1848	4800×1800	3	≤400	3-100	56-330	18.5	970	5-9
4YZK1848	4800×1800	4	≤400	3-80	56-330	22	970	5-9
2YZK1860	6000×1800	2	≤400	3-100	65-586	18.5	970	5-9
3YZK1860	6000×1800	3	≤400	3-100	65-586	22	970	5-9
4YZK1860	6000×1800	4	≤400	3-100	65-586	30	980	5-9
2YZK2160	6000×2100	2	≤400	3-100	81-720	22	980	5-9
3YZK2160	6000×2100	3	≤400	3-100	81-720	30	970	5-9
4YZK2160	6000×2100	4	≤400	3-100	81-720	30	980	5-9
2YZK2460	6000×2400	2	≤400	3-150	100-810	22	970	5-9
3YZK2460	6000×2400	3	≤400	3-150	100-810	30	980	5-9
4YZK2460	6000×2400	4	≤400	3-150	150-850	37	980	5-9
2YZK2870	7000X2800	2	≤400	5-100	120-680	22x2	750	8
3YZK2870	7000X2800	3	≤400	5-100	180-720	22x2	750	8
2YZK3070	7000X3000	2	≤400	5-100	200-700	37	750	8
3YZK3070	7000X3000	3	≤400	5-100	230-800	45	750	8

FAQ

1. How long is the product warranty period ?

A: the product warranty period is 12 months since shipping date.

2. I am a foreign customers, if the machine works wrong, how your company solved ?

A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.

3.Where can we buy the machine's parts?

A: Our company can provide machine`s parts for your any time.

4. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

5. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

6. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
